Product details

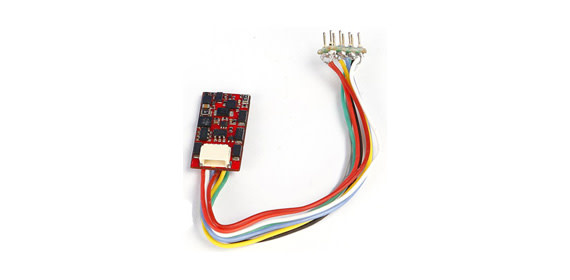

The PIKO SmartDecoder 4.1 8-pin is a universally applicable digital decoder of the latest generation with a wide range of light outputs and a 1.1 A motor controller. The PIKO SmartDecoder 4.1 supports the
DCC data formats with Rail-ComPlus, Motorola, and Selectrix and can also be used on analog layouts.
The SmartDecoder
automatically detects the respective operating mode. Up to 44 switchable additional functions can be accessed.
Features:
• Fully automatic recognition of operating modes
• Operating modes DCC, MM, Sx, AC, DC
• Continuous motor current 1.2 A
• Peak motor current 2.0 A
• 2 additional special function outputs
• With SUSI socket
• Total current of function outputs 0.25 A
• Shunting gear
• Programmable motor characteristic curve
• Braking section modes
• Short circuit and overheating protection
• Dimensions: 20x11x3.8 mm
The new PIKO SmartDecoders of Generation 4.1 correspond to the latest state of the art and promise even more diverse options for the digital control of model railway vehicles. In addition to problem-free registration with suitable control centers via RailComPlus, such as our PIKO SmartControl control center, new individual settings in the mapping are possible, for example.
